Cut CAM

Finishing rules define all processes done automatically after nesting and have many benefits including collision prevention, restoration to balance of potentially tilting parts and making optimal use of an entire worksheet surface.

When auto-tooling the order of rules in this list is important. When the cut generates tooling for a contour, it checks this contour against each rule in the list, starting at the first rule. If the shape matches any rule, the corresponding action is applied; the software does not process any further rules for this contour. The checkbox at the beginning of each row can be used to temporarily disable any rule without having to delete it.

Contour - Select here the type of contour. The available options for contour types.

All - Contours are not filtered based on contour type if 'All' is the selected option for contour type.

Inner - All inner contours of a part are eligible for applying this rule.

Outer - All outer contours of a part are eligible for applying this rule.

Stable - All contours (inner as well as outer) which will remain stable on slats are eligible.

Stable Inner - All inner contours will remain stable on slats.

Stable Outer - All outer contours will remain stable on slats.

Unstable - All contours (inner as well as outer) which will either tip or fall through the slats are eligible.

Unstable Inner - All inner contours that are unstable on slats.

Unstable Outer - All outer contours that are unstable on slats.

Colliding - All unstable contours that are too close to the other contours of the part. If this contour were cut first, an adjacent contour could not be cut without the risk of head collision with the tipping contour. Contours that are stable on slats are never considered to be colliding. If an inner contour is too close to another inner contour, both are unstable and then both will be marked as colliding. If an inner contour is too close to an outer contour, only the inner contour will be marked as colliding. It is unnecessary to mark the outer contour as colliding as it will almost always be cut after the inner contour. The new parameter Allowance when routing around tipping holes is used to decide if two contours are too close.

Colliding Inner - All inner contours that are colliding.

Colliding Outer - All outer contours that are colliding.

Size - The maximum limiting size of contours for which this rule applies. You can either type in the size in the form of “widthxheight” or type in just one number if both width and height have the same value. Action - The action to perform; micro-joint, scrap cut etc.

None - No special action is taken

Auto Microjoint - Applies micro-joint(s) on the contour. The software will automatically decide how many micro-joints are required based on the parameter Maximum allowed dip into slats

Cut up scrap - Cut larger cutouts

One micro-joint - Create exactly one micro-joint on the contour

Two micro-joints - Create exactly two micro-joints on the contour

Three micro-joints - Create exactly three micro-joints on the contour

The software automatically recognises whether a part could tilt on a layout. Possible tilting/unstable parts will be marked with red coloured contours on the layout, therefore allowing adjustment to the finishing rules before processing the job.

TecZoneCut can decide the number of micro-joints needed on a contour. Usually, one micro-joint is enough, but in some cases (typically, long thin contours) more micro-joints might be required to provide enough support to the contour so that it does not tilt into the slats or break the micro-joint due to the torque created by its own weight or gas blowing over it.

A large inner contour could be evaluated as being stable at the part level. However, on a layout, if smaller parts are nested in this cut-out, it could become unstable. The software will detect such situations and automatically add a microjoint. This is done dynamically even while the user is manually changing the layout.

For example:

The inner hole of this part will be stable on the machine slats hence no microjoint is created.

With another part placed inside the hole, it could now tip, hence the software automatically creating a microjoint. Removing the smaller part out, the microjoint will be removed automatically.

Navigate to Application settings → settings → Cut CAM → Microjoint settings.

Nanojoints are a better alternative to usual microjointIn the case of twinline tooling, they are a game changerTecZone is ready to use nanojoint instead of hard or soft microjoints when this advanced feature is available on the user’s machine. In the settings window, for TruLaser machines, user can choose the preferred type of microjoint.
Available options are Hard, Soft & Nano.

Start Corner is the start corner of the tooling. The start corner choices are bottom left, bottom right, top left and top right.

Sort Direction is the sequencing of the parts on the sheet.

Auto - Automatically sorts the parts by choosing the direction with the shortest distance.

X First - Sorts the parts in the X direction first.

Y First - Sorts the parts in the Y direction first.

Staggered - Sequencing is done such that the next part has a maximum distance to the recently cut part to address heat dissipation.

This option is whether points should be processed or skipped when importing.

None - Imports all points

Points on polylines - Skips points on polylines

All - Skips all points on import.

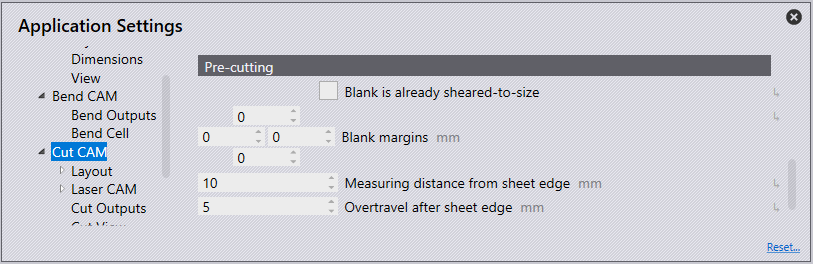

Blank is already sheared-to-size - This option will be enabled when the sheet is already cut to the correct size.

Blank Margins - This option is to input a margin to be cut to the edge of the blank.

Measuring distance from the sheet edge - Distance from the sheet edge the pre-cutting should begin.

Overtravel after the sheet edge - This is the overtravel distance allowed from the sheet edge.
