Filler parts in Nest Layout

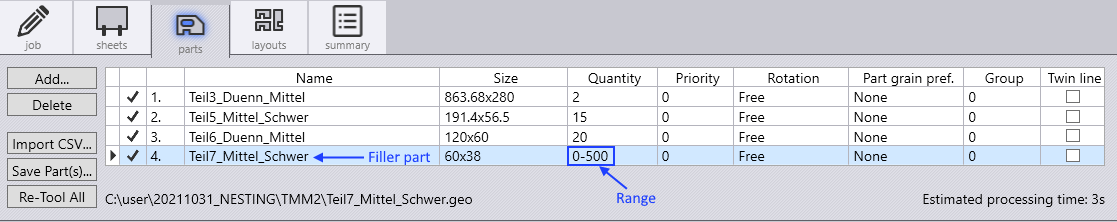

Filler parts are used to fill up a sheet with an unspecified number of parts. They are defined by a range.

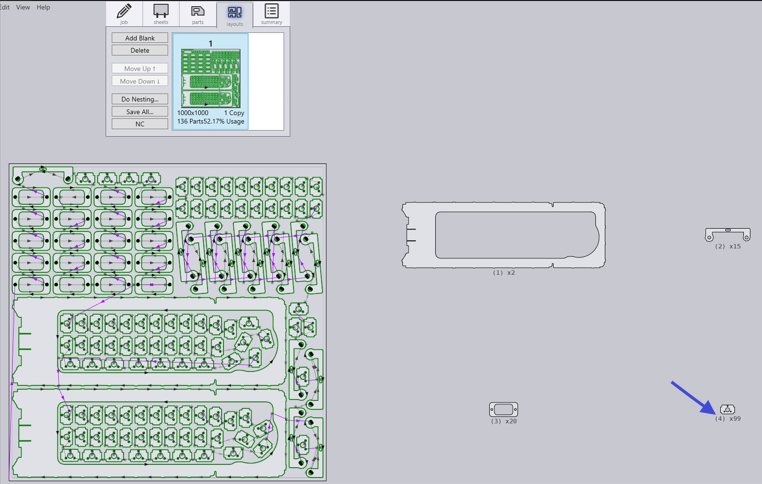

In this example below, TecZone utilizes 99 of the 500 parts to fill up the sheet.

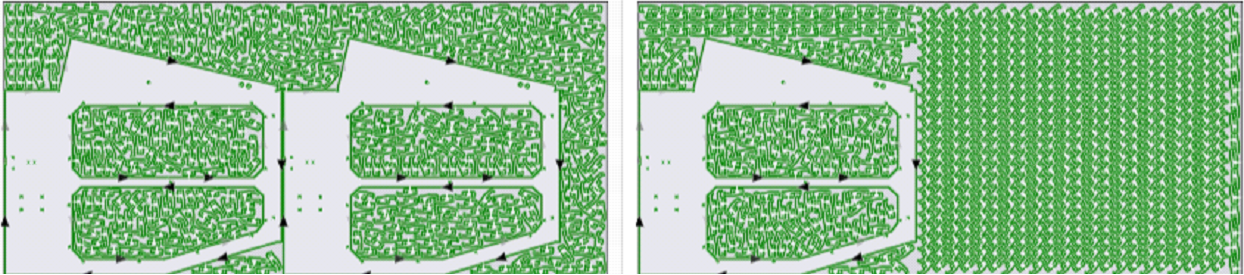

When optional filler parts are available, TecZone nesting engine will not create a remainder sheet and instead fill the entire sheet with the optional part. Sometimes, a remainder sheet would be more desirable.

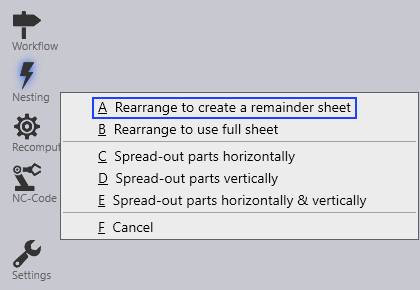

Click Rearrange to create a remainder sheet from the Nesting command.

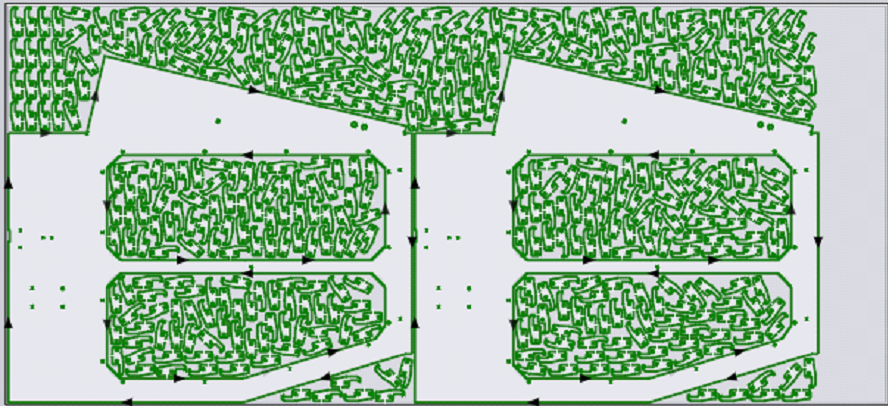

Figure 1. Without 'Rearrange to create a remainder sheet'

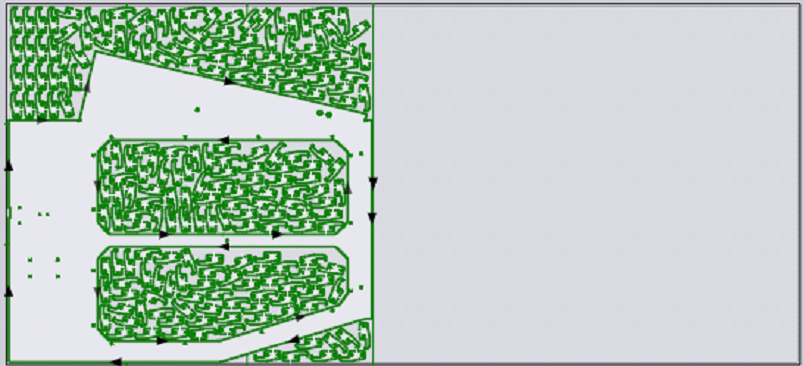

Figure 2. With 'Rearrange to create a remainder sheet'
