Space Out Slice Cuts to Avoid Collision

Space Out Slice Cuts to Avoid Collision

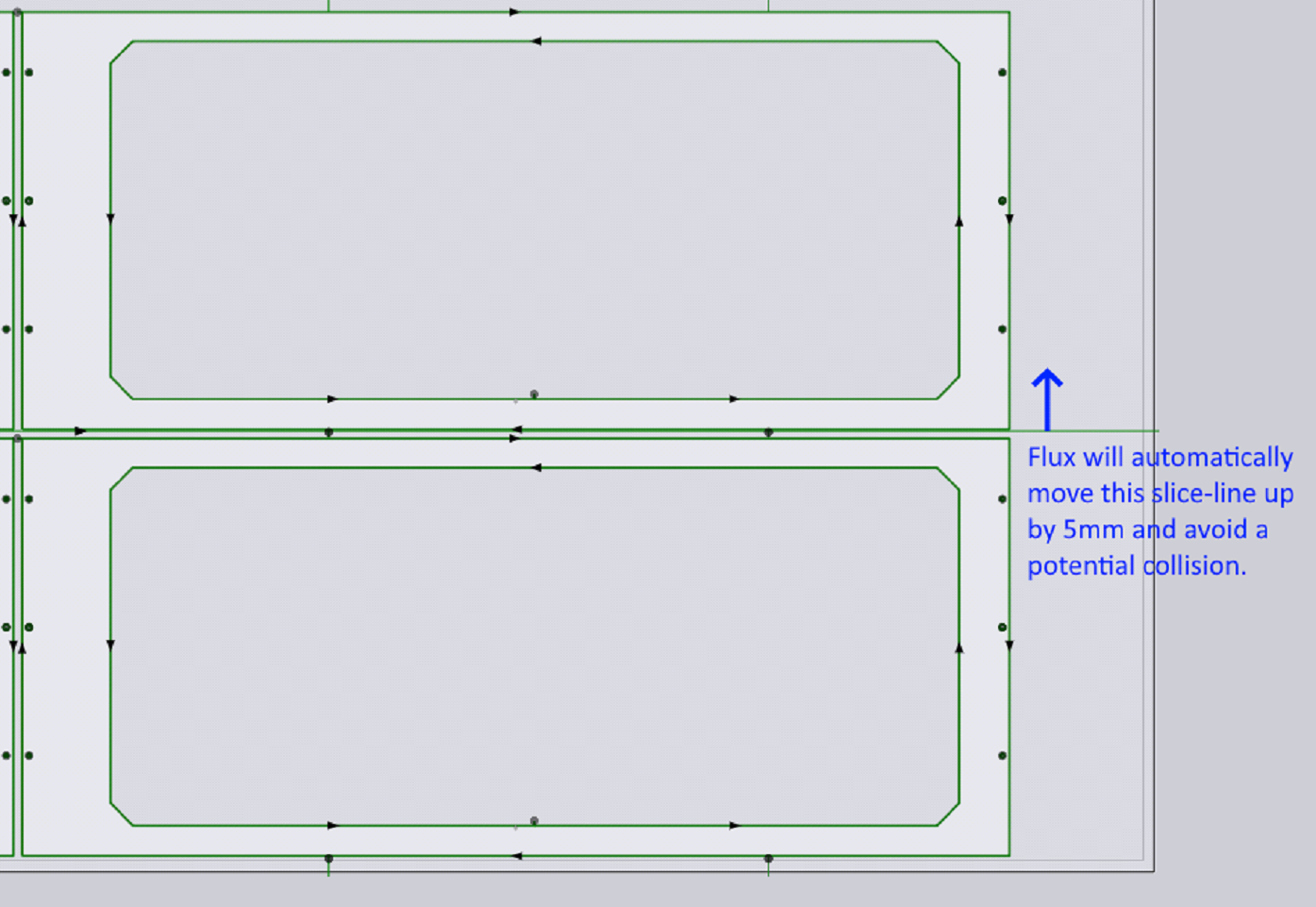

Lengthy slice cuts running parallel to a part outline are dangerous. TecZone identifies such situations and will try new slice line position, 5mm on either side to see if collision is avoided. This is done only when very long cuts (> 800mm) are found.

4569
