Sheet

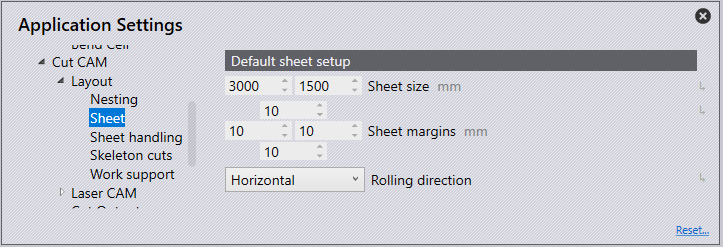

Default Sheet Setup
Sheet size – This option is to set the default sheet size for a nest.
Sheet margins – This option is to set the default sheet margins for a nest. The parts will start to be nested from the distance set from the edge of the sheet.
Rolling direction –This option is used to set the default grain constraint for sheets.
- None – There is no rolling direction set as default.
- Horizontal – The default grain is aligned in the X direction.
- Vertical – The default grain is aligned in the Y direction.
